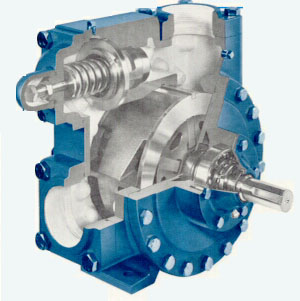

Multi-Purpose Pumps
For Bulk Plants,Terminals And Truck Systems
-LGL2,LGL3 & LGL4 PUMPS-

SPECIFICATIONS
ASSEMBLED
PUMP UNITS
PUMP
AND
MOTOR
SPEED
RPM
APPROXIMATE DELIVERY OF PROPANE @ DIFFERENTIAL
PRESSURES AND PUMP SPEEDS
SHOWN
MAXIMUM DIFFERENTIAL
PRESSURE
MAXIMUM WORKING PRESSURE¹
DRIVE RATING
(MAXIMUM HORSEPOWER DRIVE WILL TRANSMIT)
MOTOR SIZE FOR MOUNTING ON STANDARD BASE
 MODEL
FACTORY
RELIEF
VALVE
SETTING
50 PSI
(354 kPa)
100 PSI
(689 kPa)
PSI
kPa
PSI
kPa
0-3
HOUR
DUTY
3-8
HOUR
DUTY
 8-24
HOUR
DUTY
MINIMUM FRAME
SIZE
MAXIMUM FRAME
SIZE
 GPM
LPM
GPM
LPM
 LGL2-VB
150 psi
(1034 kPa)
 660
520
420
330
 67
50
40
30
 254
189
151
114
 57
41
30
23
216
155
114
87
150
150
150
150
1034
1034
1034
1034
350
350
350
350
2413
2413
2413
2413
9.2
6.4
4.8
3.1
9.2
6.4
4.8
3.1
7.8
5.4
4.0
2.6
 184T
182T
182T
182T
 213T
184T
184T
182T
LGL2-HROF
150 psi
(1034 kPa)
 640
520
420
350
65
50
40
32
 246
189
151
121
 55
41
30
24
 208
155
114
91
150
150
150
150
1034
1034
1034
1034
350
350
350
350
2413
2413
2413
2413
 8.9
7.0
5.4
4.1
 7.1
5.6
4.3
3.3
 5.7
4.5
3.4
2.6
 143T
143T
143T
143T
215T
215T
215T
215T
LGL3-VB
150 psi
(1034 kPa)
 640
520
420
330
 133
108
80
59
 503
409
303
223
 112
84
60
42
 424
318
227
159
 150
150
150
150
 1034
1034
1034
1034
 350
350
350
350
2413
2413
2413
2413
 12.1
8.9
7.3
5.4
12.1
8.9
7.2
5.4
 10.2
7.5
6.1
4.5
215T
213T
213T
184T
 254T
215T
215T
184T
LGL3-HRA
150 psi
(1034 kPa)
 640
520
420
350
 133
108
80
63
 503
409
303
238
 112
84
60
45
 424
318
227
170
 150
150
150
150
 1034
1034
1034
1034
 350
350
350
350
2413
2413
2413
2413
 25.0
24.3
17.8
14.4
 25.0
19.4
14.3
11.5
 20.0
15.5
11.4
9.2
 182T
182T
182T
182T
 256T
256T
256T
256T
LGL4-VB
LGLD4-VB
150 psi
(1034 kPa)
640
520
420
330
270
220
170
130
1022
833
644
492
 220
180
130
90
823
681
492
341
125
125
125
125
 862
862
862
862
350
350
350
350
2413
2413
2413
2413
26.9
19.6
15.8
11.4
26.9
19.6
15.8
11.4
22.8
16.6
13.4
9.8
254T
254T
215T
213T
284T
256T
254T
215T
LGL4-HRA
LGLD4-HRA
150 psi
(1034 kPa)
640
520
420
350
270
220
170
138
1022
833
644
522
220
180
130
95
823
681
492
360
125
125
125
125
862
862
862
862
350
350
350
350
2413
2413
2413
2413
25.0
24.3
17.8
14.4
25.0
19.4
14.3
11.5
20.0
15.5
11.4
9.2
213T
213T
213T
213T
256T
256T
256T
256T
LGL4-HRB
LGLD4-HRB
150 psi
(1034 kPa)
640
500
400
270
210
160
1022
795
606
220
170
120
823
644
454
125
125
125
862
862
862
350
350
350
2413
2413
2413
30.0
30.0
30.0
30.0
30.0
24.1
26.9
24.0
19.3
182T
182T
182T
286T
286T
286T
¹ Maximum rated working pressure is 350 psi (2413 kPa) for LPG and NH3

COMPANION FLANGES

PUMP
MODEL
STANDARD
OR
OPTIONAL
INTAKE
DISCHARGE
LGL2
TLGLD2
  STANDARD   2" NPT Flange  2" NPT Flange
 OPTIONAL  2" Weld Flange  2" Weld Flange
LGL3
TLGLD3
  STANDARD  3" NPT Flange  3" NPT Flange
 OPTIONAL  3" Weld Flange  3" Weld Flange
LGL4
LGLD4
  STANDARD  4" Weld Flange  3" Weld Flange
 OPTIONAL  3" NPT Flange  3" NPT Flange
 OPTIONAL  3" Weld Flange  3" Weld Flange
 OPTIONAL  4" Weld Flange  4" Weld Flange

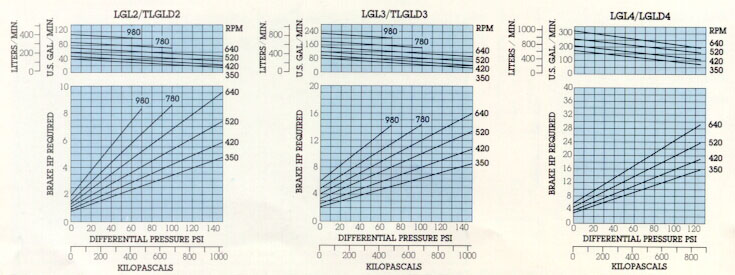

PERFORMANCE
