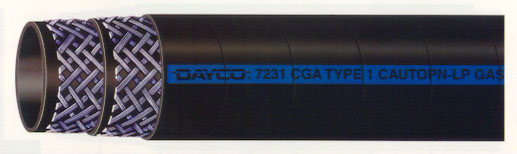

7231 SERIES
LPG HOSES
Tube:
Cover
Reinforcement:
Temperature Range:
Pressure Range:
Safety Factor:
Black Nitrile
Perforated Black Neoprane
One or Multiple Stainless Steel Braids
-40 ºF  to 180ºF ( Note: LPG should never be elevated above 100 ºF during conveyance)
Max. 350 PSI Working Pressure
5:1
Part
No.
Inner Dia.
(in.)
Inner Dia.
(mm)
Reinf.
Braids
Outer Dia.
(in.)
Outer Dia.
(mm)
Min.Wt.Per
100 Ft.(lbs)
Max.Bend Radius (in.)








7231-751
3/4
19.1
1
1.250
31.8
61
10.0
7231-1001
1
25.4
1
1.500
38.1
78
12.0
7231-1251
1 1/4
31.8
1
1.750
44.5
96
16.5
7231-1501
1 1/2
38.1
1
2.000
50.8
107
20.0
7231-2002
2
50.8
2
2.625
66.7
177
25.0
