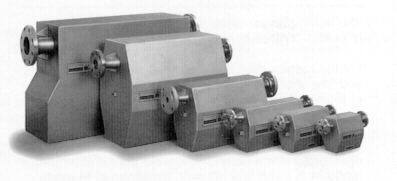

MASS FLOW METER

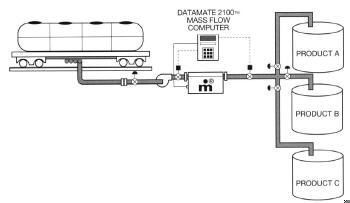

BULK OFF-LOADING
The Schlumberger mass flowmeter can control off-loading and inventory management of costly liquids with outstanding accuracy year-round.

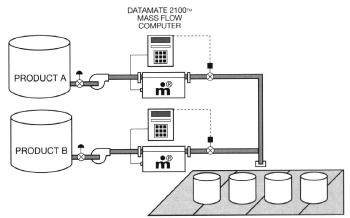

CONTAINER FILLING
Containers can be filled precisely with single or multiple fluids.

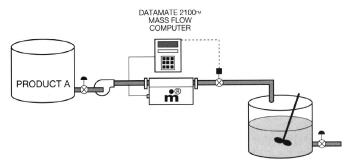

SINGLE LIQUID/SINGLE TANK
Delivery of a single costly fluid, such as a catalyst, can be metered with custody-transfer precision.

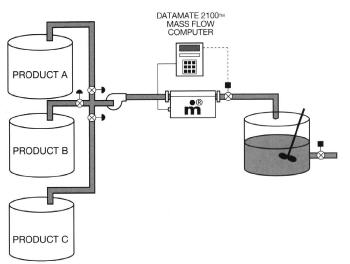

MULTI-LIQUID/MULTI-BATCH
Delivery of multiple costly or critical quantities for multiple formulations can be managed by a single mass flowmeter.

SCHLUMBERGER MASS FLOWMETER PERFORMANCE

MODEL
PROPERTY m012 m025 m0501 m1001 m2001 m4001
Operating Ranges
Flow rate,
kb/min (lb/min)		 0.09 to 0.9
(0.2 to 20)		 0.36 to 36.0
(0.8 to 80.0)		 1.36 to 136
(3.0 to 300)		 5.0 to 500
(11.0 to 1100)		 14.5 to 1450
(32 to 3200)		 68.0 to 6804
(150 to 15,000)
Density range,
g/cc		 0.4 to 2.0
Temperature range,
oC (oF)		 -45 to 205
(-50 to 400)
Max. operating
pressure, bar (psi)2		 137
(2000)		 250
(3600)		 250
(3600)		 83
(1200)		 68
(1000)		 103
(1500)
Accuracies/Repeatibility
Mass accuracy ±0.15% of rate ± zero stability3
Mass zero stability,
kg/min (lb/min)		 ±0.0012
(±0.0027)		 ±0.0064
(±0.014)		 ±0.0168
(±0.037)		 ±0.0612
(±0.135)		 ±0.1901
(±0.419)		 ±0.9072
(±2.0)
Mass repeatability,
% of rate		 ±0.10 ±0.10 ±0.10 ±0.10 ±0.10 ±0.05
Density
accuracy, g/cc		 ±0.005 ±0.002 ±0.002 ±0.001 ±0.001 ±0.0008
Density
repeatability, g/cc		 ±0.0005 ±0.0005 ±0.0005 ±0.0005 ±0.0005 ±0.0002
Temperature accuracy,
oC (oF)		 ±0.56
(±l)
Turndown ratio 100:1 (10:1 for custody transfer)
Physical
Tube shape Omega
Wetted materials 316L SST (HASTELLOY C-22 optional)
Nominal tube
bore, mm (in.)		 3.0
(1/8)		 6.4
(1/4)		 12.7
(1/2)		 25.4
(1.0)		 51.0
(2.0)		 101.6
(4.0)
Housing 304L - SST
Enclosure class Transducer is intrinsically safe when connected
to an approved mass flow computer
CENELEC EEx ia IIB T5
FM and CSA Class 1, Division 1, Groups C & D
3A-authorized
version		 Yes Yes Yes Yes Yes No
Connection type VCO: 3/8"
female

ANSI: 1/2";
150# RF



3A-Authorized
Tri-Clamp

 VCO: 3/8"
female

ANSI: 1/2";
150#, 300#
600# RF


3A-Authorized;
Tri-Clamp
Industrial
Tri-Clamp

DIN: DN15;
PN40, PN100

 VCO: 1"
female

ANSI: 1/2";
3/4", 1";
150#, 300#
600# RF

3A-Authorized;
Tri-Clamp
Industrial
Tri-Clamp

DIN: DN15,
DN25; PN40,
PN100


ANSI: 1";
1-1/2", 2";
150#, 300#
600# RF

3A-Authorized;
Tri-Clamp
Industrial
Tri-Clamp

DIN: DN50,
DN80; PN40,
PN100


ANSI: 2";
3", 4";
150#, 300#
600# RF

3A-Authorized;
Tri-Clamp
Industrial
Tri-Clamp

DIN: DN50,
DN80, DN100;
PN40, PN100


ANSI: 4";
6", 8";
150#, 300#
600#, 900# RF






DIN: DN100,
DN150, DN200;
PN40, PN100
1 Meter size approvable by N.I.S.T. and Industry Canada, Approval No. AV-2292T
2 Limited by flange rating
3 All calibration equipment traceable to N.I.S.T.
