LARGE CAPACITY PUMPS

LARGE CAPACITY PUMPS
For Bulk Plant Use


MC-3, MC-3H	MC-4, MC-4H	MC-5, MC-5H

SPECIFICATIONS

PUMPS ONLY AVARAGE DELIVERY RATE
(GPM) MAXIMUM DIFFERENTIAL PRESSURE INLET/ OUTLET SIZE: FEMALE THREADED MOTOR PUMP ROTATION AS LOOKING AT PUMP SHAFT-END

MODEL 40 PSID
1800 RPM 75 PSID
1800 RPM PSI INCHES H.P.

MC-3 84 70 125 2½ 5 H.P. TO 40 PSID
7½H.P.OVER 75 PSID REVERSIBLE

MC-3H 84 @ 1500 RPM 70 @ 1500 RPM 125 2½ SAME AS
ABOVE REVERSIBLE

MC-4 125 105 125 4 " INLET
2½" OUTLET 7½ H.P. TO 40 PSID
10H.P. OVER 75 PSID CCW

MC-4H 125 @ 1500 RPM 105 @ 1500 RPM 125 4 " INLET
2½" OUTLET SAME AS
ABOVE CCW

MC-5 167 142 125 4 " INLET
2½" OUTLET 10 H.P. TO 40 PSID 15H.P. OVER 75 PSID CCW

MC-5H 167 @ 1500 RPM 142 @ 1500 RPM 125 4 " INLET
2½" OUTLET SAME AS
ABOVE CCW

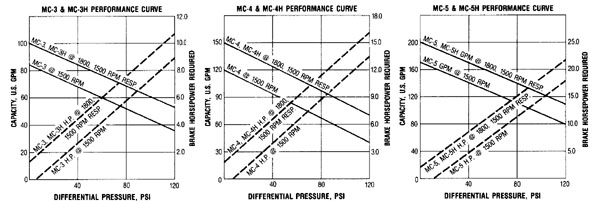

PERFORMANCE

Go to Smith Pumps Page

PUMPS ONLY	AVARAGE DELIVERY RATE (GPM)		MAXIMUM DIFFERENTIAL PRESSURE	INLET/ OUTLET SIZE: FEMALE THREADED	MOTOR	PUMP ROTATION AS LOOKING AT PUMP SHAFT-END
MODEL	40 PSID 1800 RPM	75 PSID 1800 RPM	PSI	INCHES	H.P.	PUMP ROTATION AS LOOKING AT PUMP SHAFT-END
MC-3	84	70	125	2½	5 H.P. TO 40 PSID 7½H.P.OVER 75 PSID	REVERSIBLE
MC-3H	84 @ 1500 RPM	70 @ 1500 RPM	125	2½	SAME AS ABOVE	REVERSIBLE
MC-4	125	105	125	4 " INLET 2½" OUTLET	7½ H.P. TO 40 PSID 10H.P. OVER 75 PSID	CCW
MC-4H	125 @ 1500 RPM	105 @ 1500 RPM	125	4 " INLET 2½" OUTLET	SAME AS ABOVE	CCW
MC-5	167	142	125	4 " INLET 2½" OUTLET	10 H.P. TO 40 PSID 15H.P. OVER 75 PSID	CCW
MC-5H	167 @ 1500 RPM	142 @ 1500 RPM	125	4 " INLET 2½" OUTLET	SAME AS ABOVE	CCW
