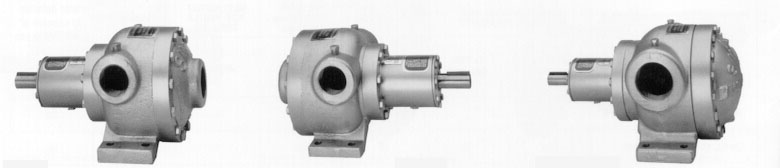

MEDIUM CAPACITY PUMPS

MEDIUM CAPACITY PUMPS
For Multiple Cylinder Filling and Small Bulk Plant Installations


MC-1044	MC1044H	MC2, MC-2H	MC-2Q

SPECIFICATIONS

PUMPS ONLY AVARAGE DELIVERY RATE
(GPM) MAXIMUM DIFFERENTIAL PRESSURE INLET/ OUTLET SIZE: FEMALE THREADED MOTOR PUMP ROTATION AS LOOKING AT PUMP SHAFT-END

MODEL 40 PSID
1800 RPM 75 PSID
1800 RPM PSI INCHES H.P.

MC-1044 17 14 125 1½ 1½ H.P. TO 40 PSID
2 H.P. OVER 75 PSID REVERSIBLE

MC-1044H 30 25 125 1½ 2 H.P. TO 40 PSID
3 H.P. OVER 75 PSID REVERSIBLE

MC-2 42 35 125 2½ 3 H.P. TO 40 PSID
5 H.P. OVER 75 PSID REVERSIBLE

MC-2H 42 @ 1500 RPM 35 @ 1500 RPM 125 2½ 3 H.P. TO 40 PSID
5 H.P. OVER 75 PSID REVERSIBLE

MC-2Q 45 28 @ 150 PSID 150 2½ 5 H.P. TO 100 PSID 2½HPOVER 150 PSID CW

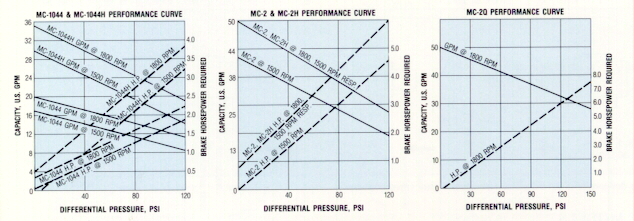

PERFORMANCE

Go to Smith Pumps Page

PUMPS ONLY	AVARAGE DELIVERY RATE (GPM)		MAXIMUM DIFFERENTIAL PRESSURE	INLET/ OUTLET SIZE: FEMALE THREADED	MOTOR	PUMP ROTATION AS LOOKING AT PUMP SHAFT-END
MODEL	40 PSID 1800 RPM	75 PSID 1800 RPM	PSI	INCHES	H.P.	PUMP ROTATION AS LOOKING AT PUMP SHAFT-END
MC-1044	17	14	125	1½	1½ H.P. TO 40 PSID 2 H.P. OVER 75 PSID	REVERSIBLE
MC-1044H	30	25	125	1½	2 H.P. TO 40 PSID 3 H.P. OVER 75 PSID	REVERSIBLE
MC-2	42	35	125	2½	3 H.P. TO 40 PSID 5 H.P. OVER 75 PSID	REVERSIBLE
MC-2H	42 @ 1500 RPM	35 @ 1500 RPM	125	2½	3 H.P. TO 40 PSID 5 H.P. OVER 75 PSID	REVERSIBLE
MC-2Q	45	28 @ 150 PSID	150	2½	5 H.P. TO 100 PSID 2½HPOVER 150 PSID	CW
