SMALL CAPACITY PUMPS

SMALL CAPACITY PUMPS
For Cylinders, Automotive, Forklift and Tank Evacuation

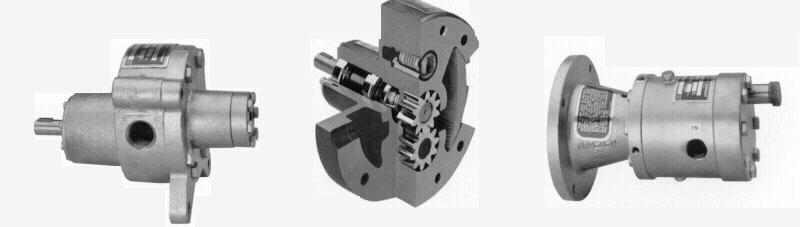

D- SERIES E- SERIES MC- and GC- SERIES

SPECIFICATIONS

PUMPS ONLY AVARAGE DELIVERY RATE
(GPM) INTERNAL BYPASS RELIEF VALVE SETTING MAXIMUM DIFFERENTIAL PRESSURE INLET/ OUTLET SIZE: FEMALE THREADED MOTOR PUMP ROTATION AS LOOKING AT PUMP SHAFT-END

MODEL MOTOR SPEED (RPM) 40 PSID
3600 RPM 75 PSID
3600 RPM PSI PSI INCHES H.P.

DW-1Z, EG-1Z 3600 8½ 7 90 125 ¾ 1 CW

DW-HZ, EC-HZ 3600 13½ 12 90 125 1 1½ CW

MC-1,GC-1 3600 9 8 MC-1:ADJUSTABLE
GC-1: 90 125 ¾ 1 MC-1: CCW
GC-1: CW

PERFORMANCE

Go to Smith Pumps Page

PUMPS ONLY		AVARAGE DELIVERY RATE (GPM)		INTERNAL BYPASS RELIEF VALVE SETTING	MAXIMUM DIFFERENTIAL PRESSURE	INLET/ OUTLET SIZE: FEMALE THREADED	MOTOR	PUMP ROTATION AS LOOKING AT PUMP SHAFT-END
MODEL	MOTOR SPEED (RPM)	40 PSID 3600 RPM	75 PSID 3600 RPM	PSI	PSI	INCHES	H.P.	PUMP ROTATION AS LOOKING AT PUMP SHAFT-END
DW-1Z, EG-1Z	3600	8½	7	90	125	¾	1	CW
DW-HZ, EC-HZ	3600	13½	12	90	125	1	1½	CW
MC-1,GC-1	3600	9	8	MC-1:ADJUSTABLE GC-1: 90	125	¾	1	MC-1: CCW GC-1: CW
