Applications : Hose Reel, Loading Arm,
Bulk-Head |

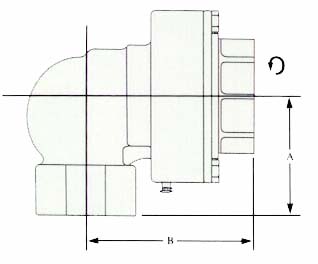

90-Degree Type
|
MODEL
|
SIZE
|
THREAD
|
A
|
B
|
WEIGHT
|
|
SMAC-3490
|
¾ x ¾
|
FEMALE
x
FEMALE
|
3
|
4-5/8
|
6¾
|
|
SMAC-190
|
1 x 1
|
FEMALE x
FEMALE
|
3
|
4-5/8
|
6¾
|
|
SMAC-114
|
1¼ x 1¼
|
FEMALE x
FEMALE
|
3
|
4-5/8
|
6¾
|
|

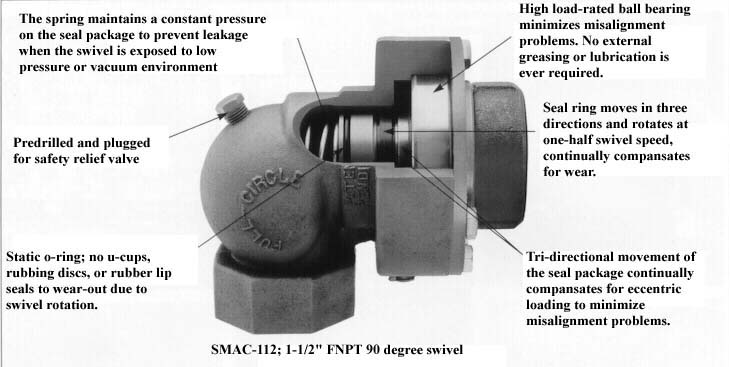

SMAC-112
|
1 ½ x 1 ½
|
FEMALE x
FEMALE
|
3¼
|
4¾
|
13-1/8
|
|
SMAC-200
|
2 x 2
|
FEMALE
x
FEMALE
|
3¼
|
4¾
|
12¼
|
|
Applications : Hose Reel, Loading Arm,
Bulk-Head |

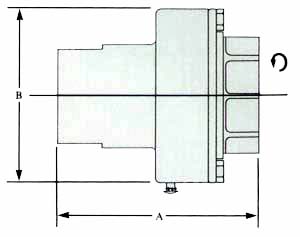

Straight Through Type
|
MODEL
|
SIZE
|
THREAD
|
A
|
B
|
WEIGHT
|
|
SMAC-34ST
|
¾ x ¾
|
FEMALE
x
FEMALE
|
5¼
|
3-1/16
|
4 ½
|
|
SMAC-1ST
|
1 x 1
|
FEMALE
x
FEMALE
|
5¼
|
3-1/16
|
4 ½
|
|
SMAC-114ST
|
1¼ x 1¼
|
FEMALE
x
FEMALE
|
5¼
|
3-1/16
|
4 ½
|
|
SMAC-112ST
|
1 ½ x 1 ½
|
FEMALE
x
FEMALE
|
5-11/16
|
4-7/8
|
11 ¾
|
|
SMAC-200ST
|
2 x 2
|
FEMALE
x
FEMALE
|
5-11/16
|
4-7/8
|
11
|
|
Applications : Hose end only; to allow
filler valve to rotate 360-degrees. |
Straight Through Hose End Filler
Valve Type
|
MODEL
|
SIZE
|
THREAD
|
A
|
B
|
WEIGHT
|
|
SMAC-34
|
¾ x ¾
|
MALE
x
FEMALE
|
4-1/8
|
2-7/16
|
1 ½
|
|
SMAC-1
|
1 x 1
|
MALE
x
FEMALE
|
6-3/8
|
3
|
2 ¾
|
|
JO-34
|
¾ x ¾
|
MALE
x
FEMALE
|
3-3/8
|
2 ½
|
1 ½
|
|
JO-1
|
1 x 1
|
MALE
x
FEMALE
|
3-3/8
|
2 ½
|
1 ½
|
|
|
Application : For loading/unloading arm
such as railroad tankcar loading unloading operation where swivel action
in two different planes is required. |

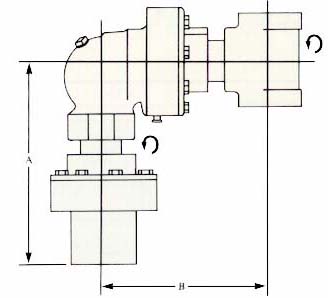

Loading/Unloading Arm Combination
|
MODEL
|
SIZE
|
THREAD
|
A
|
B
|
WEIGHT
|
|
SMAC-34LA
|
¾ x ¾
|
FEMALE
x
FEMALE
|
9
|
6 ¾
|
16
|
|
SMAC-1LA
|
1 x 1
|
FEMALE
x
FEMALE
|
9
|
6 ¾
|
16
|
|
SMAC-114LA
|
1¼ x 1¼
|
FEMALE
x
FEMALE
|
9
|
6 ¾
|
16
|
|
SMAC-112LA
|
1 ½ x 1 ½
|
FEMALE
x
FEMALE
|
10 ½
|
7 ½
|
30
|
|
SMAC-200LA
|
2 x 2
|
FEMALE
x
FEMALE
|
10 ½
|
7 ½
|
30
|
|
